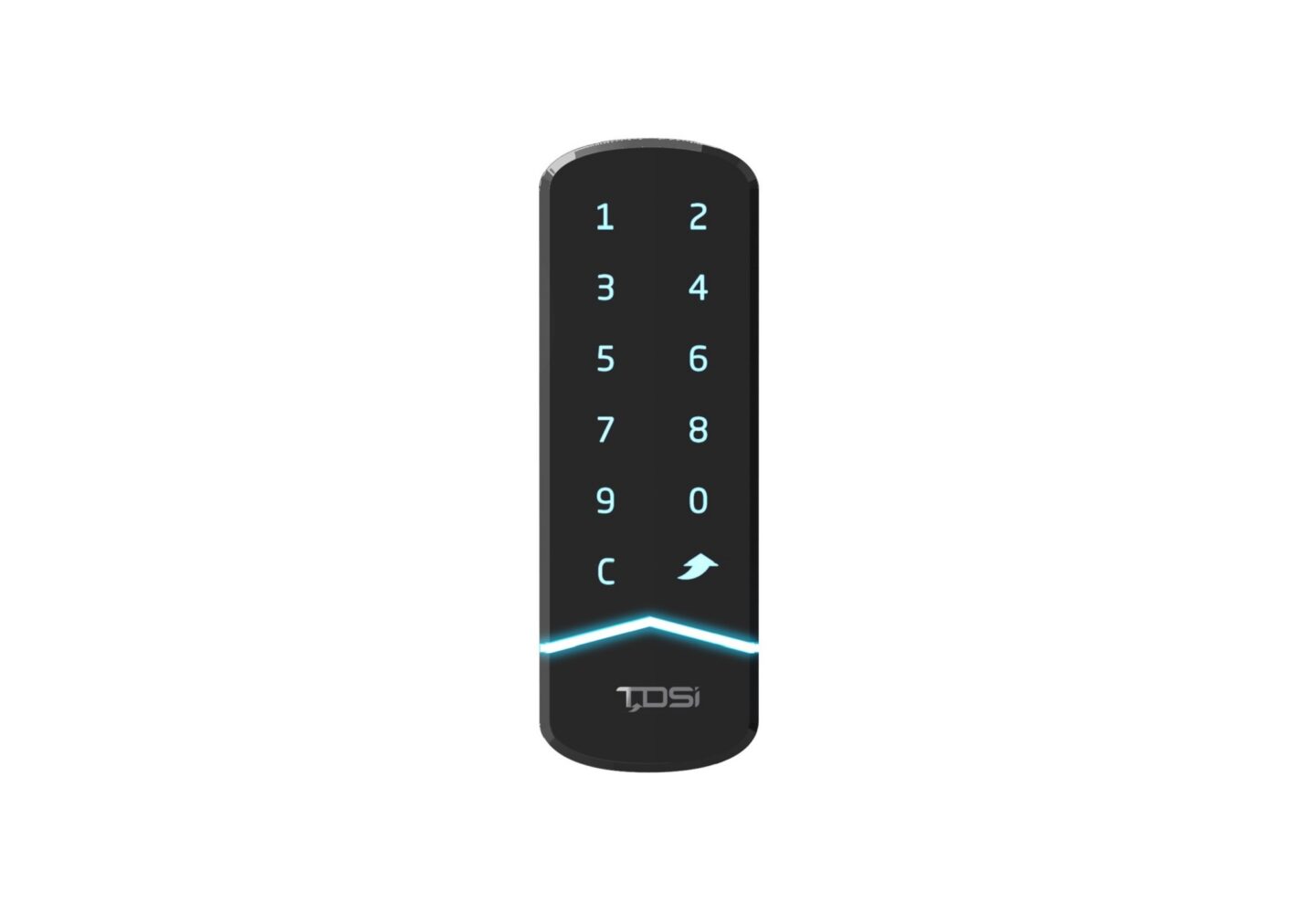

GARDiS MIFARE Classic & MIFARE PLUS Mullion Reader
5002-0620, 5002-0621 (w/keypad)
Based on the proven MIFARE® smart card platform, this reader is programmed to read the number from TDSi’s pre-programmed Sector 4 cards through the reader configuration pack. The flexible and versatile reader is also able to read any sector utilising defined keys for high-security applications and may be used in an existing application that already operates on a user-defined sector and keys.
Dimensions 42 x 104 x 18 mm
Weight 250 g
Operating Environment -20°C to + 55°C, 0 – 95% relative humidity (non-condensing)
Power Supply 7 to 14VDC, 200mA (Max)
Operating frequency 13.56 MHz (nominal)
Card technology ISO14443A, MIFARE Plus, DESfire, Classic
Sounder Integral
LEDs RGB
Read range < 50 mm
Output formats Magnetic Stripe, Wiegand 26-bit** / 34-bit / 37-bit
- Compatible with ISO 14443-A standard for 13.56MHz.
- Fully encapsulated design provides maximum protection against water ingress making it suitable
for mounting both indoors and out. - Integral LEDs provide clear visual indication of access status.
- In-built sounder gives unambiguous feedback of card reads.
- Choice of output options allow connection to the majority of access control systems.
- Multiple mounting options allow reader to be mounted to a single gang electrical box or directly to a non-metallic surface.
